Electrophoresis Power Supply Manufacturers in Chennai, Power Supply Sleek Manufacturers in Chennai

Electrophoresis Power Supply in Chennai

Searching for Power Supply Sleek Manufacturers in Chennai? EPS BioSolutions known to be prominent Electrophoresis Power Supply Manufacturers in Chennai. Power Supply is designed for electrophoresis and blotting techniques including large format and high throughput applications. The small footprint, large handle, and simple operation make the Power supply easy to set up and use in your lab. With the large, easy to read LED & LCD, simply set the constant parameter, set the timer (if desired), and push start.

Brochure

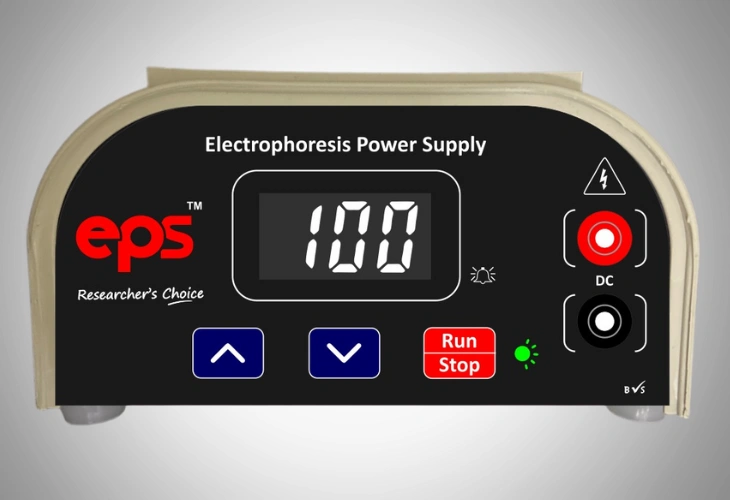

Sleek Model

Features

Compact and Light weight
Overload / short – circuit protection
Suitable For Mini Agarose, SDS – PAGE, Paper, Immuno electrophoresis and blotting systems

Technical Specifications & Ordering Information

Model	EPS/PS/ SLK 100	EPS/PS SLK 200	EPS/PS SLK D100	EPS/PS SLK D200
DC Voltage	50,100,150,200,250&300		5 to 300V
Current	100mA	200mA	100mA	200mA
Control	Soft membrane key
No. of Output	Single, mm socket		Dual, mm socket
Power	Single Phase,230V,50Hz

Electrophoresis Power Supply Manufacturers in Chennai

Sinusoidal Model

Features

Compact and Light weight
Auto Restart on power failure
No LoadOver detect
Seven segment display and Digital control
Easy to use: Knob and membrane key
Buzzer and real time process
Overload / short – circuit protection
Suitable For Agarose, SDS – PAGE, Paper, Immuno electrophoresis and blotting systems

Technical Specifications & Ordering Information

Model	EPS/PS Sino 300/100	EPS/PS Sino 300/200	EPS/PS Sino 300/300	EPS/PS Sino 500/500	EPS/PS Sino 500/1000
DC Voltage	0 to 300V	0 to 300V	0 to 300V	0 to 500V	0 to 500V
Current	0 to 100mA	0 to 200mA	0 to 300mA	0 to 500mA	0 to 1A
Timer	1 Min - 9 hrs. 59 Min
Display	4 Digits-Seven segment
Resolution	1 V, 1 mA, 1 Min
Parameters	Voltage, Current & Time
Output	4 Parallel, 4mm socket
Control	Knob Type

LCD- Model

Features

Variable LCD model with a maximum 1000 mA with safety
Constant Voltage and constant current modes with auto balancing facility
Programmable for 20 users depends on their applications
Fine adjusting facility for setting the parameters
Over load and short circuit protection
Weight is around 2 kg made up of Injection molding ABS plastic enclosure.
Buzzer and memory option.
Auto restart set program in case of power failure.
Four output terminals

Technical Specifications & Ordering Information

Model	EPS/PS LCD 300/200	EPS/PS LCD 300/300	EPS/PS LCD 500/500	EPS/PS LCD 500/1000
DC Voltage	0 to 300V	0 to 300V	0 to 500V	0 to 500V
Current	0 to 200 mA	0 to 300 mA	0 to 500 mA	0 to 1A
Timer	1 Min - 9 hrs. 59 Min
Display	LCD - 16X 2 Line
Resolution	1 V, 1 mA, 1 Min
Parameter Control	Manual/Program Mode
Power	Single Phase, 230V, 50Hz
Output	4 Parallel, 4mm socket
Weight	2 KG
