Verticalpage Gel Electrophoresis Equipment Manufacturers in Chennai

Verticalpage Gel Electrophoresis Equipment in Chennai

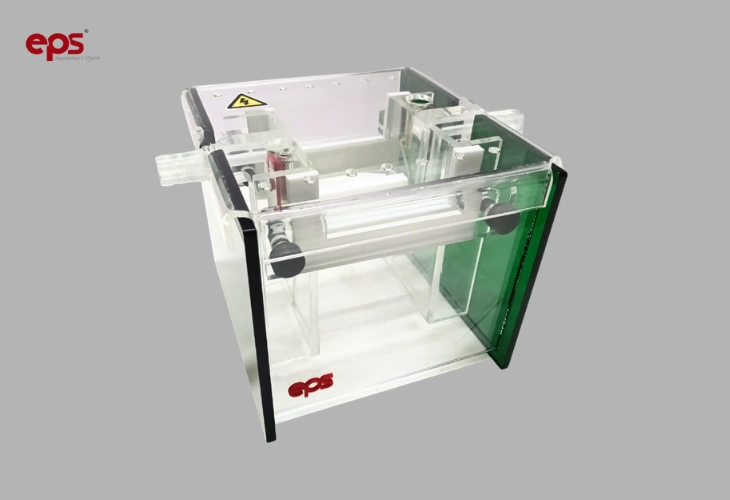

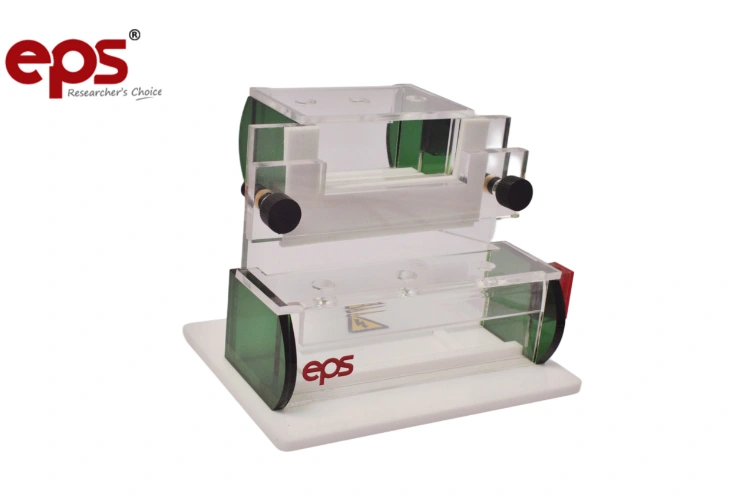

EPS, one among the best Verticalpage Gel Electrophoresis Equipment Manufacturers in Chennai. Our Vertical electrophoresis utilises potent protein and nucleic acid analytical tools for applications within all aspects of life science research, ranging from purity determination to analysis of complex protein lysates.

Brochure

Features

Glass plate size 24 x 19 cm (maximum)
Produce straight lanes and sharp, well-defined bands
Run up to two gels (maximum 40 samples) at one time under identical conditions
Run gels at uniform temperature from 1 to 45°C
Glass Bond spacers (optional) gives leak proof casting
Accommodates denaturing and native polyacrylamide gels
A wide array of accessories allows you to tailor gel configurations to your needs
Water re-circulation for all dual models

Complete Unit Includes:

Buffer tank with safety lid
Electrodes (Positive and negative)
Glass plates, Gel casting Stand
Teflon Combs(Thickness 1 mm and 1.5 mm)
Glass supporter, clamper and screws
Power cord
User Guide

Technical Specifications & Ordering Information

MODEL	EPS/MINI PAGE 10X10	EPS/MINI PAGE 12X11	EPS/MIDI PAGE 18X18	EPS/MAXI PAGE 24X19	EPS/MINI D PAGE 10X10	EPS/MIDI D PAGE 18X18	EPS/MAXI D PAGE 24X19
Buffer Capacity (ML)	250ML	280ML	300ML	1000ML	500ML	600ML	1200ML
Gel Size (cm)	8X7	10X8	16X14	20X16	2(8X7)	2(16X14)	2(20X16)
No. of Wells	7	10	13	20	7	13	20
Max Samples	7	10	13	20	14	26	40
Electrode Diameter (mm)	0.2	0.2	0.2	0.2	0.2	0.2	0.2
