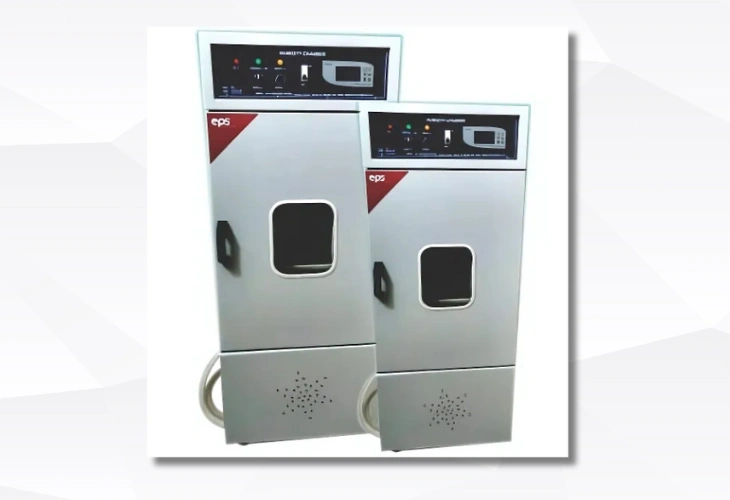

Humidity / Humidity Chamber Manufacturers
in Chennai
Technical Specification & Ordering Information
| Category | EPS/HC-200 | EPS/HC-270 | EPS/HC-350 | EPS/HC-430 | EPS/HC-630 | EPS/HC-800 | EPS/HC-1000 |
|---|---|---|---|---|---|---|---|
| STABILITY | EPS/SC-200 | EPS/SC-270 | EPS/SC-350 | EPS/SC-430 | EPS/SC-630 | EPS/SC-800 | EPS/SC-1000 |
| Dimension (MM) | 550 x 550 x 710 | 600 x 600 x 710 | 650 x 650 x 810 | 650 x 650 x 950 | 710 x 710 x 1250 | 800 x 800 x 1250 | 850 x 850 x 1350 |
| Volume | 200 | 270 | 350 | 430 | 630 | 800 | 1000 |
| Model | Vertical, Floor model | ||||||
| Temperature Range | +10°C to +60°C | ||||||
| Humidity Range | 30% to 95% RH | ||||||
| Sensor for Temperature | PT100, RTD, Class-A | ||||||
| Sensor for Humidity | Capacitive type Rh sensor | ||||||
| Humidity System | Direct detective method | ||||||
| Controller | Digital PID humidity cum temp. controller with resolution of 0.1°C & 0.1% | ||||||
| Uniformity | ±1°C & ±3% Rh | ||||||
| Wet & Dry Heaters | SS industrial heaters | ||||||
| Temperature Uniformity | Forced air circulation with fan motor | ||||||
| Humidity Unit | Inner Streaming unit, water line & controlling unit will be outside. | ||||||
| Outer | 1.2mm thick MS with powder coated | ||||||
| Inner | 1.2mm thick SS 304, duly polished | ||||||
| Insulation | PUF | ||||||
| Door | Double walled insulated & interior lined with SS304, silicon gaskets for leak proof, lock with key, SS handle & heavy duty hinges for door. | ||||||
| Window | 5mm thick vacuum glass window with illumination lamp. | ||||||
| Trays | Adjustable type SS mesh tray-2 Nos | ||||||
| Compressor | Hermetically sealed single stage Emerson Copeland make compressor. | ||||||
| Refrigerant | Environmental/CFC free | ||||||
| Condenser & Evaporator | Air cooled Fin & Tube type | ||||||
| Power Supply | 230v, Single phase, 50Hz | ||||||
